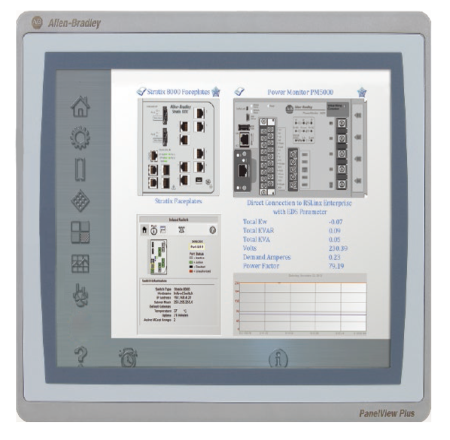

★ PanelView Plus 7圖形終端

Time:2021-04-02  瀏覽次數:2098次
★ PanelView Plus 7圖形終端

我們的 Bulletin 2711P PanelView? Plus 7 圖形終端包括標準版本和高性能版本,可提供 4 至 19 in. 的寬屏顯示畫面尺寸。使用 FactoryTalk? View Machine Edition 構建您的應用,有助于簡化配置和強化您的集成架構解決方案。這些終端包括以太網連接,使您能夠通過 VNC 連接從遠程位置監視應用項目。



●使用 Windows CE 6.0 標準功能和彩色薄膜晶體管 LCD、18 位彩色圖形

●通過 VNC 連接,從遠程位置監視應用項目

●使用 SD 卡或 USB 閃存盤快速?gòu)?fù)制和恢復操作員界面

●包括電子郵件和短信通知功能

●包括 512 MB 內存和 512 MB 非易失性內存(大約 80 MB 的可用用戶內存)



標準型

●提供帶鍵盤選件的 4 至 15 in. 的寬屏顯示畫面尺寸

●當與連接到一臺控制器的 FactoryTalk? Machine Edition 軟件搭配使用時,提供 100 個屏幕以及 500 個報警

●提供支持 IEEE 1588 的以太網 1 x RJ45 10/100 MB Auto-MDI/MDI-X

●具有單獨的或設備級環網以太網端口以實現網絡連通性



高性能版本

●提供帶鍵盤選件的 7 至 19 in. 的寬屏顯示畫面尺寸

●包括視頻回放支持(提供高級用戶幫助功能)

●包括 RDP 客戶端功能以創建瘦客戶端終端

●具有兩個支持設備級環網、線形或星形網絡拓?fù)浣Y(jié)構的以太網端口

●包括適用于所有尺寸的直流全觸屏顯示器和 15 英寸直流鍵盤顯示器上敷形涂覆的選件

●包括適用于 Allen?Bradley 品牌和非品牌終端的選件



不銹鋼高性能版本

●提供尺寸為 9 和 12 in. 的無品牌顯示器

●采用不銹鋼 304 面板邊框

●包含可替換的藍色食品級硅膠墊圈

●提供敷形涂覆

●通過 NSF 認證

UL IP69 防護等級,按 IP69K 進行了測試,符合 ISO 20653 要求



ArmorView Plus 7 版本

●顯示器尺寸為 12 英寸,安裝在全封閉的面板中

●達到 IP66 防護等級,可實現無機柜的 HMI 解決方案

●提供十六種標準按鈕板配置

●包含單獨定制按鈕和開關的選項

●提供增加靈活性的選項,包括從擺臂、基座或固定表面安裝的定位安裝選項



文檔:

Bulletin 2711P PanelView Plus 7 操作員界面產品簡介(2711P-PP013)

https://literature.rockwellautomation.com/idc/groups/literature/documents/pp/2711p-pp013_-zh-p.pdf

PanelView Plus 6 至 PanelView Plus 7 圖形終端的遷移簡介(MIGRAT-PP029)

https://literature.rockwellautomation.com/idc/groups/literature/documents/pp/migrat-pp029_-en-p.pdf

可視化解決方案選型指南(VIEW-SG001)

https://literature.rockwellautomation.com/idc/groups/literature/documents/sg/view-sg001_-zh-p.pdf

Bulletin 2711P PanelView Plus 7 標準型技術數據(2711P-TD008)

https://literature.rockwellautomation.com/idc/groups/literature/documents/td/2711p-td008_-en-p.pdf

Bulletin 2711P PanelView Plus 7 標準型終端安裝桿安裝說明(2711P-IN032)

https://literature.rockwellautomation.com/idc/groups/literature/documents/in/2711p-in032_-en-p.pdf

Bulletin 2711P PanelView Plus 7 標準型終端用戶手冊(2711P-UM007)

https://literature.rockwellautomation.com/idc/groups/literature/documents/um/2711p-um007_-zh-p.pdf

Bulletin 2711P PanelView Plus 7 高性能型終端用戶手冊(2711P-UM008)

https://literature.rockwellautomation.com/idc/groups/literature/documents/um/2711p-um008_-zh-p.pdf

Bulletin 2711P PanelView Plus 7 標準型終端開口模板(2711P-DS010)

https://literature.rockwellautomation.com/idc/groups/literature/documents/ds/2711p-ds010_-en-p.pdf

Bulletin 2711P PanelView Plus 7 標準型 4...15 英寸顯示屏采購規范(2711P-SR003)

https://literature.rockwellautomation.com/idc/groups/literature/documents/sr/2711p-sr003_-en-p.pdf

Bulletin 2711P PanelView Plus 7 高性能型 7...19 英寸顯示屏采購規范(2711P-SR002)

https://literature.rockwellautomation.com/idc/groups/literature/documents/sr/2711p-sr002_-en-p.pdf

PanelView 操作員界面系列功能比較(2711P-SP011)

https://literature.rockwellautomation.com/idc/groups/literature/documents/sp/2711p-sp011_-en-p.pdf

Bulletin 2711P PanelView Plus 7 高性能型終端技術數據(2711P-TD009)

https://literature.rockwellautomation.com/idc/groups/literature/documents/td/2711p-td009_-en-p.pdf

Bulletin 2711P PanelView Plus 7 高性能型終端安裝桿安裝說明(VIEW-IN001)

https://literature.rockwellautomation.com/idc/groups/literature/documents/in/view-in001_-en-p.pdf

Bulletin 2711P PanelView Plus 7 高性能型終端開口模板(VIEW-DS001)

https://literature.rockwellautomation.com/idc/groups/literature/documents/ds/view-ds001_-en-p.pdf
